These diagrams were developed for a class to describe the relationship between the theme files included in the WordPress starter theme underscores by Automattic. While WordPress has a well-documented theme hierarchy, underscores uses its own internal rules to decide which template files get invoked. As of this writing, these rules are not documented.
Visual Documentation

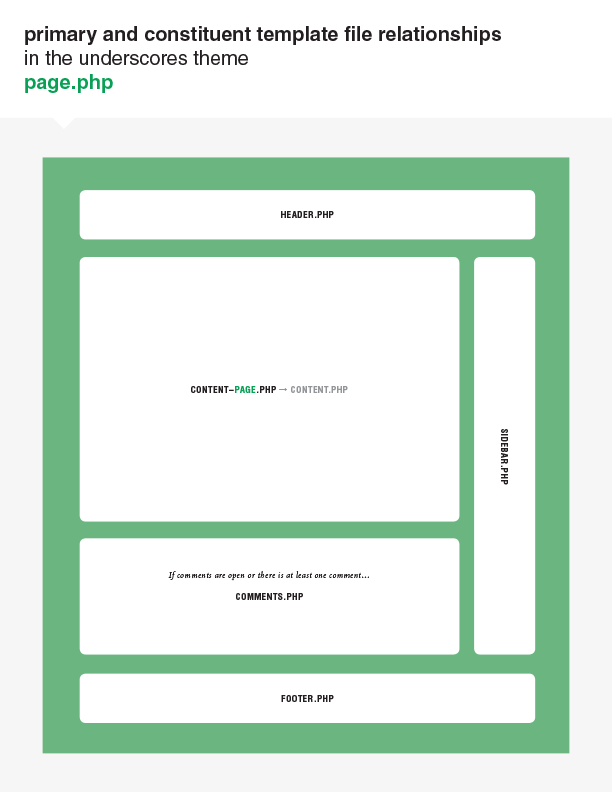

The static page diagram.
The single post diagram.
The archive index diagram.

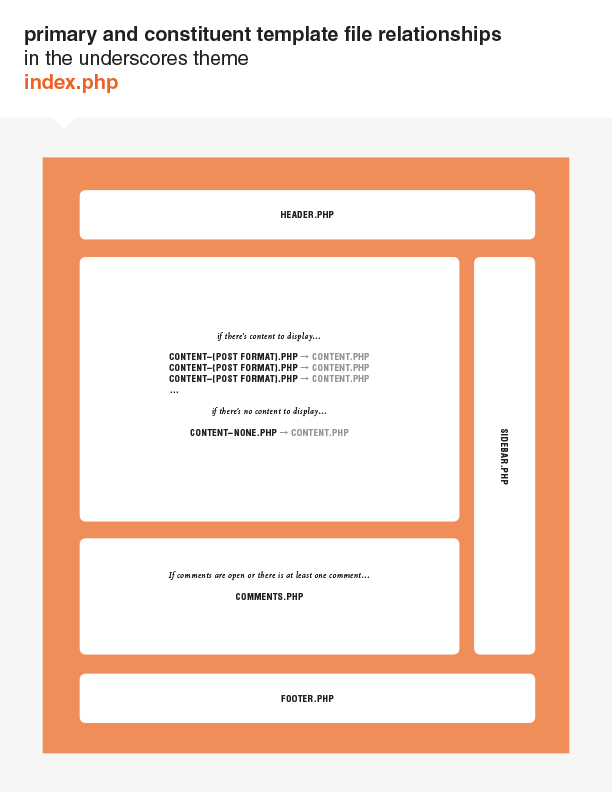

The default index diagram.

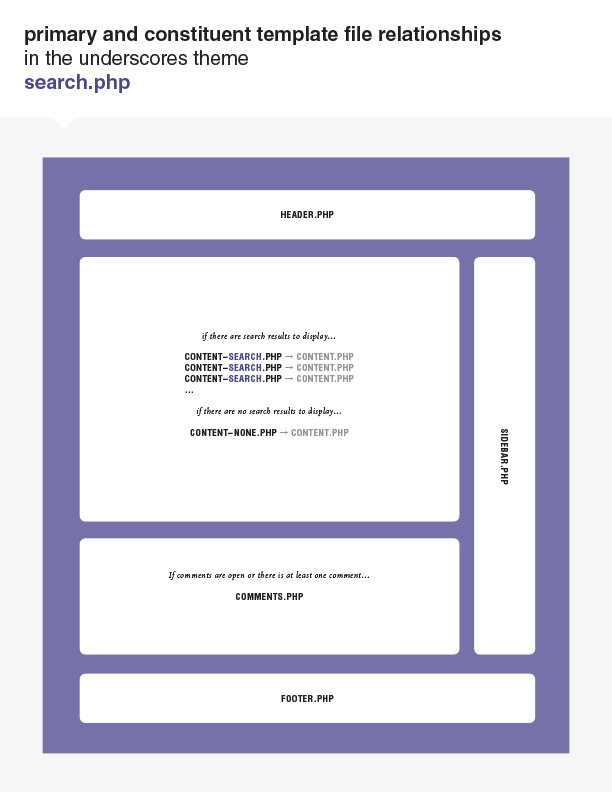

The search page diagram.

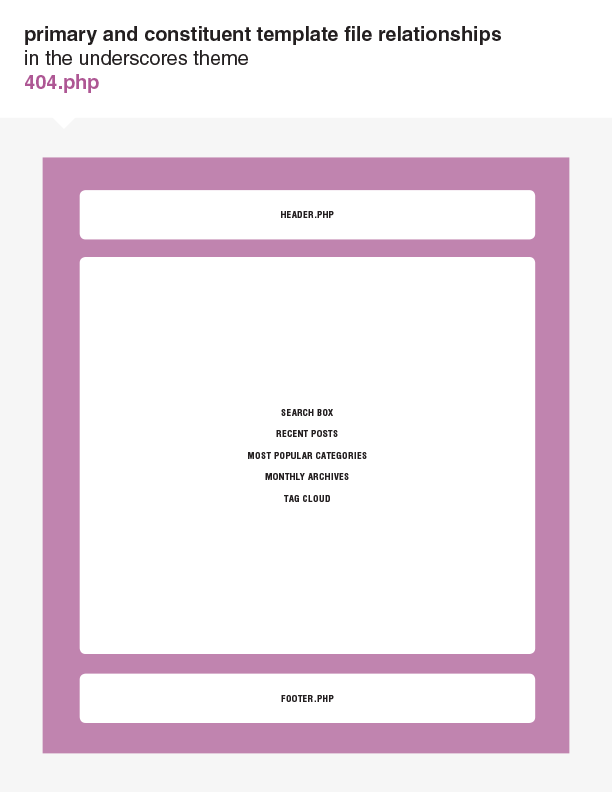

The 404 not found page diagram.
